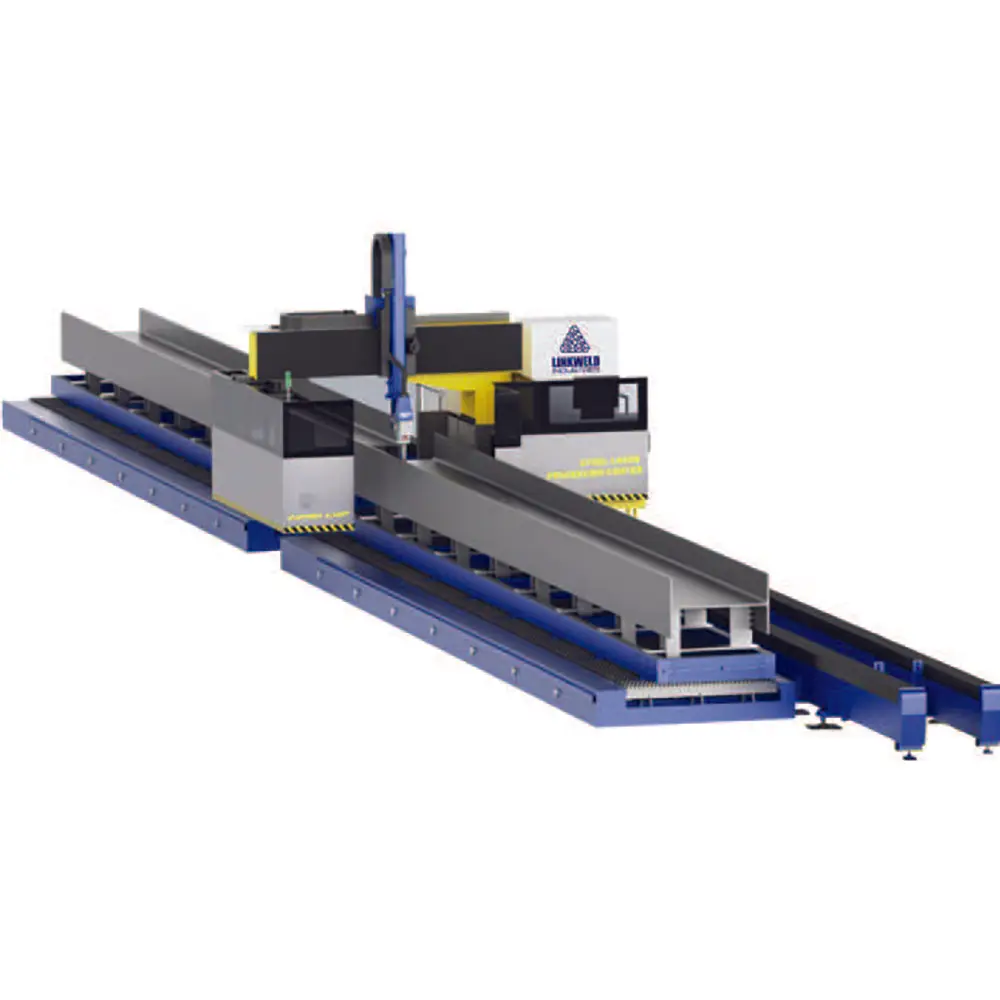

Profile Steel H-Beam Laser Cutter

Key Features

Fiber Laser Cutting Machine (H-Beam model) – capable of cutting both straight and bevel edges.
High-quality laser source from renowned brands, with warranty and service centers available in Thailand.
Fiber Laser power options ranging from 3,000W up to 60,000W.
Equipped with three movable chucks for cutting long workpieces with precision.
Strong, durable, and modern design – responsive and powerful for fast cutting, drilling, graphics cutting, and more.
Smooth cutting surface with no burn marks, burrs, or excessive dross, ensuring high stability during operation.
Capable of handling large and heavy workpieces with low maintenance cost.
Installation and training guaranteed by a team of expert laser cutting engineers, with after-sales service and consultation provided.
Authorized distributor of spare parts and accessories for laser cutting machines.

Description

Key Features

Fiber Laser Cutting Machine (H-Beam model) – capable of cutting both straight and bevel edges.
High-quality laser source from renowned brands, with warranty and service centers available in Thailand.
Fiber Laser power options ranging from 3,000W up to 60,000W.
Equipped with three movable chucks for cutting long workpieces with precision.
Strong, durable, and modern design – responsive and powerful for fast cutting, drilling, graphics cutting, and more.
Smooth cutting surface with no burn marks, burrs, or excessive dross, ensuring high stability during operation.
Capable of handling large and heavy workpieces with low maintenance cost.
Installation and training guaranteed by a team of expert laser cutting engineers, with after-sales service and consultation provided.
Authorized distributor of spare parts and accessories for laser cutting machines.

H-shaped I steel I steel	Width of 100mm – 600mm, support for 800 / 1200 / 1500 mm customization
Cut way	Height of 100mm-600mm.
Artifact length	L 26000mm, with support for customization
Cut form of the part	Functions of fixed length straight cutting, fixed length oblique cutting and end socket.
Mainly applicable to the workpiece materials:, carbon structural steel, stainless steel

X, and the Y-axis positioning accuracy	±0.10mm/m
X, Y-axis repeat positioning accuracy	±0.05mm
Maximum vacancy speed	X-axis: 15m / min Y, Z axis: 30m / min
Execution standard for cutting accuracy	ISO9013-2016\JB/T1045-2017
	X-axis: move the shaft front and back
	Y axis: the cutting head moves the axis left and right
	Z-axis: cutting head lifting shaft
	A-axis: cutting head rotation shaft
	C-axis: cutting head defaw shaft

Maximum weight of the raw materials	5000Kg
Note: The maximum weight can be provided according to the customer demand count

30000×6000×4500 mm
